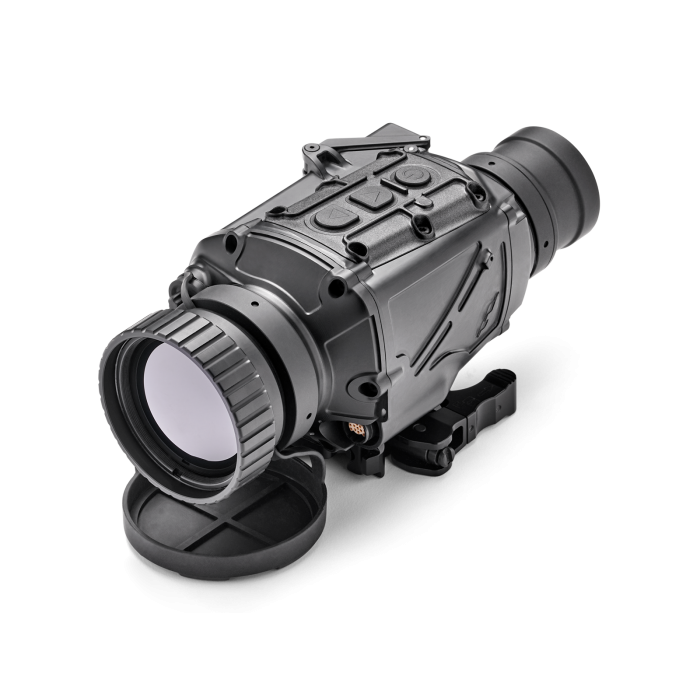

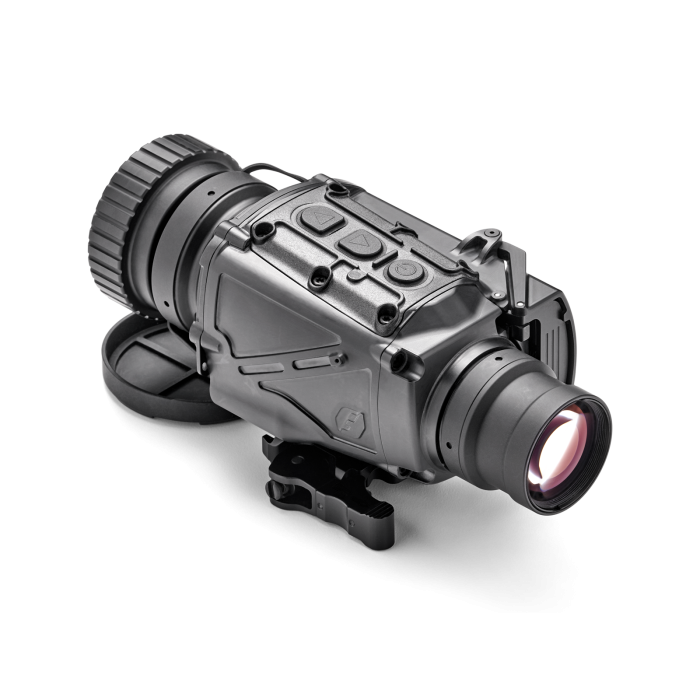

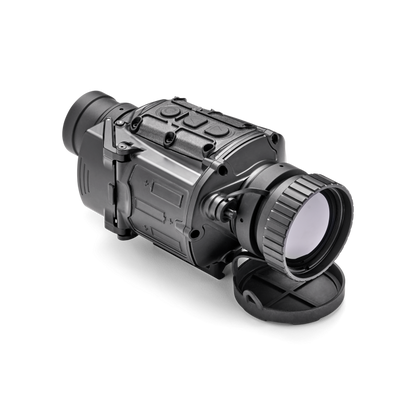

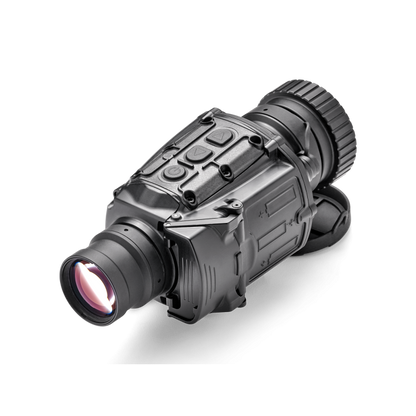

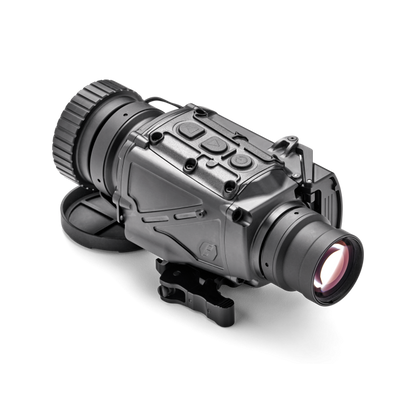

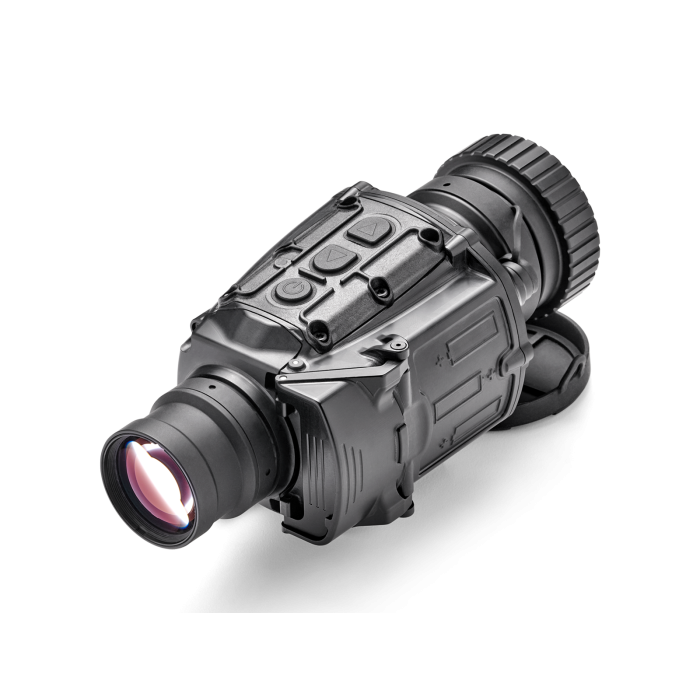

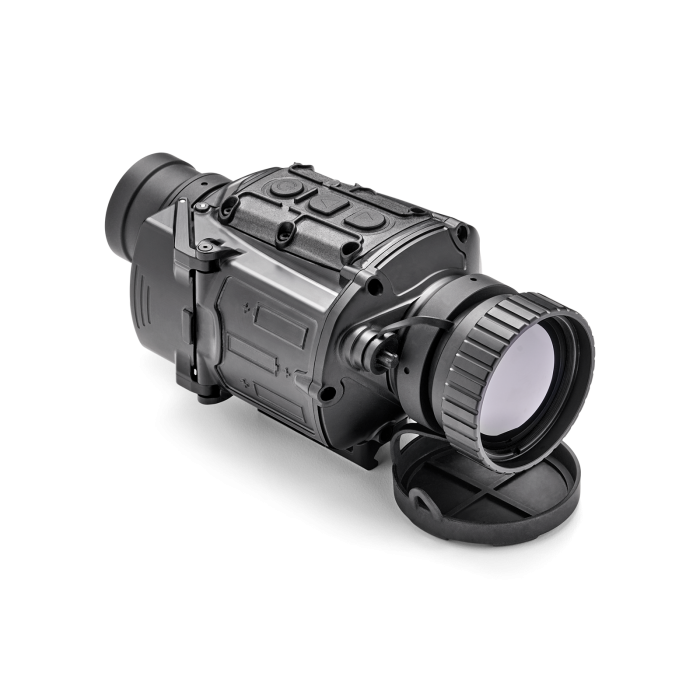

MORE ABOUT THE

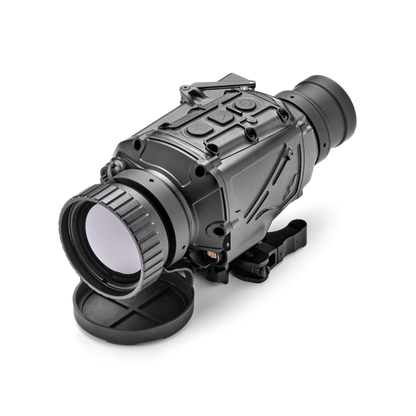

MK2 ClipIR-LR

Overview

EOTECH® thermal products incorporate the latest in IR sensors, electronics, and optical technologies to deliver world leading reliability, superior imagery and range performance. Clip-on design for use with red dots or mid magnification range (4-10X) day sights to provide thermal detection, observation, and engagement while maintaining the day optic’s ballistic zero. Features an intuitive user interface that includes image/video capture and Wifi connectivity, and attaches quickly and easily to Picatinny (1913) rails.

Tech Specs

L × W × H

7" × 3.1" × 3" (178 × 79 × 77mm)

WEIGHT

23.6 oz / 1.48 lbs (670g)

POWER SOURCE

3 AA batteries — Supports lithium, alkaline or rechargeable

BATTERY LIFE

> 8 hours

FIELD-OF-VIEW

8.7º

MAGNIFICATION

1x (2x and 4x digital zoom)

SYSTEM FOCUS DISTANCE

20m to infinity

WATER RESISTANT

10m, MIL-STD-810G

PIXELS

1280 × 1024

PIXEL PITCH

12 μm

MICRO DISPLAY COLOR

Black/white/color

Sales

The MK2 ClipIR-LR is not for sale online. Please reach out to your local EOTECH dealer or representative.

Included in the Box

  • Optic

  • Protective Case

  • Quick Start Guide

  • Technical Manual

  • Lens Cleaning Kit

Restrictions & Considerations

Export Restrictions

Pursuant to the Arms Export Control Act (AECA - 22 U.S.C. § 2778) and the International Traffic in Arms Regulations (ITAR), as administered by the U.S. Department of State’s Directorate of Defense Trade Controls (DDTC), the items shown are enumerated on the U.S. Munitions List (USML) at 22 CFR Part 121 and are subject to export, re-export, retransfer, and temporary import controls under ITAR and require authorization from DDTC prior to release to foreign persons or destinations. DDTC has primary jurisdiction over items on the USML; items not on the USML fall under the jurisdiction of the U.S. Department of Commerce’s Export Administration Regulations (EAR).

Prop 65 Warning

This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
