MORE ABOUT THE

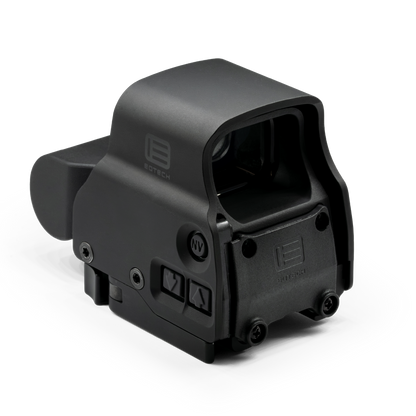

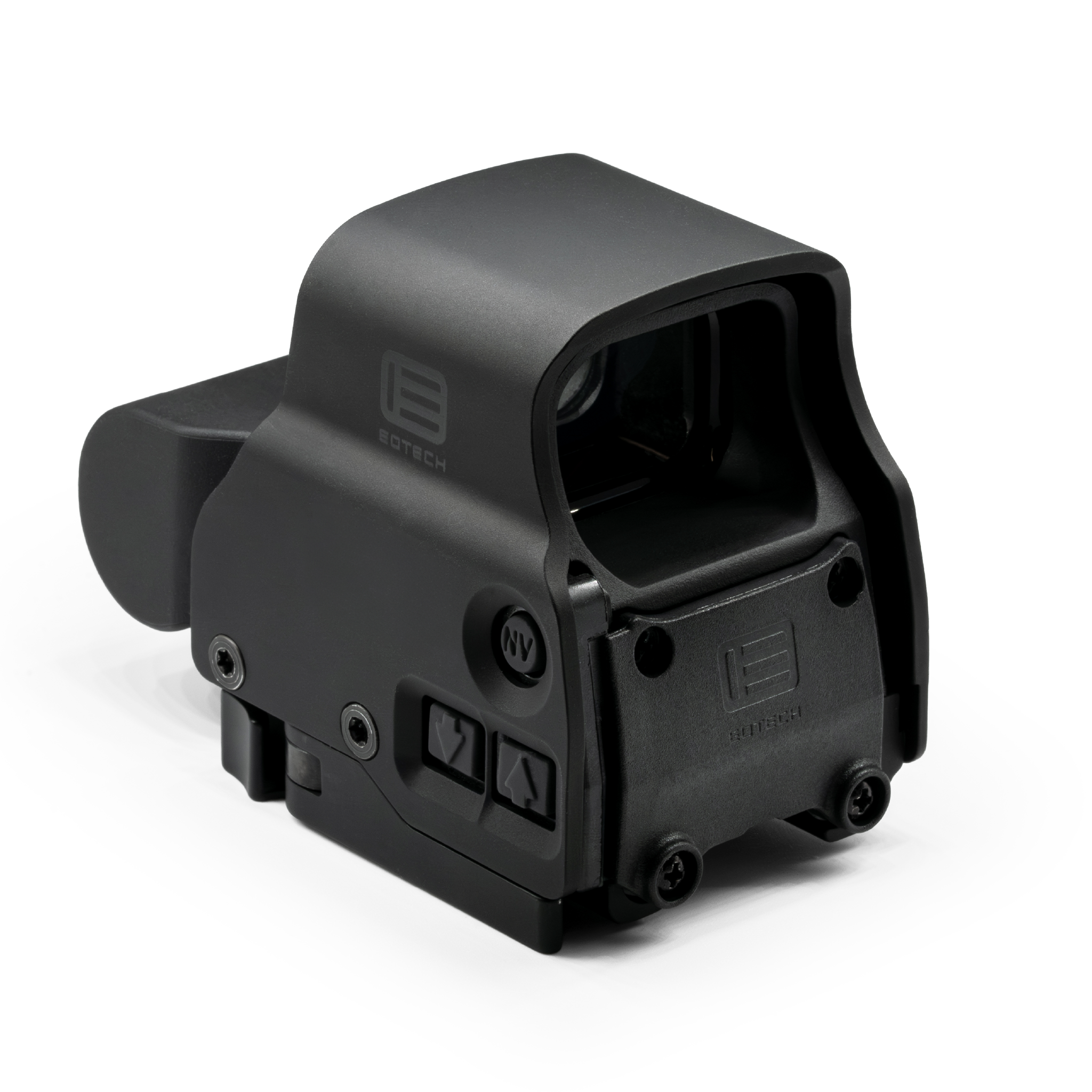

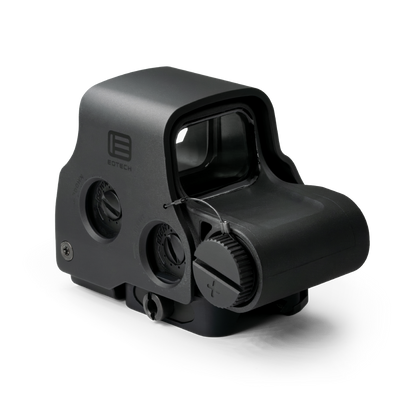

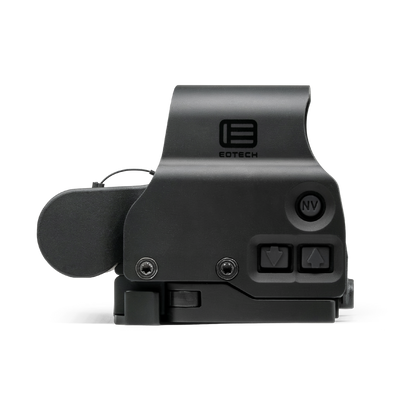

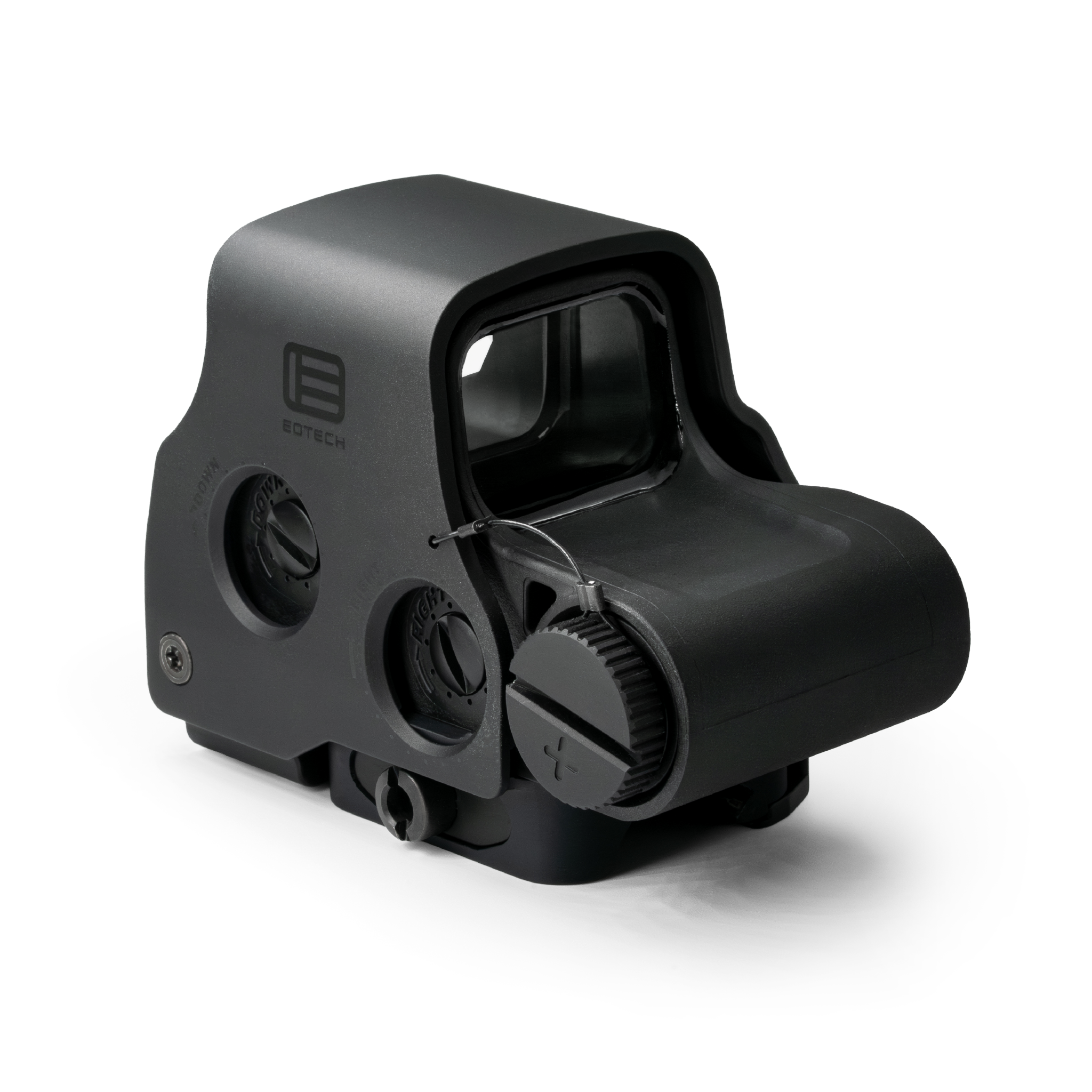

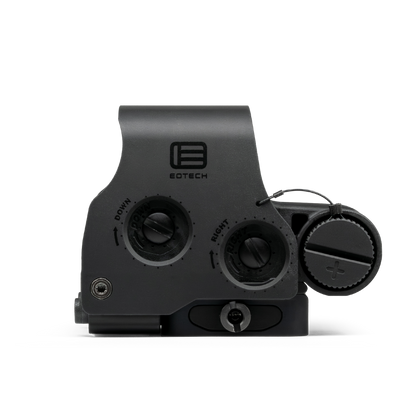

HWS EXPS3™ Black on Black

Overview

The HWS EXPS3™ is an excellent choice for professionals. The EXPS3 offers true two eyes open shooting for fast target acquisition, night vision compatible settings, and a 7mm raised quick detach base for lower 1/3 iron sight co-witness.

Tech Specs

L × W × H

3.8" x 2.3" x 2.9" (96.5 x 58.4 x 73.7 mm)

Weight

11.2oz (317.5g)

Mount

1" Weaver or MIL-STD-1913 rail

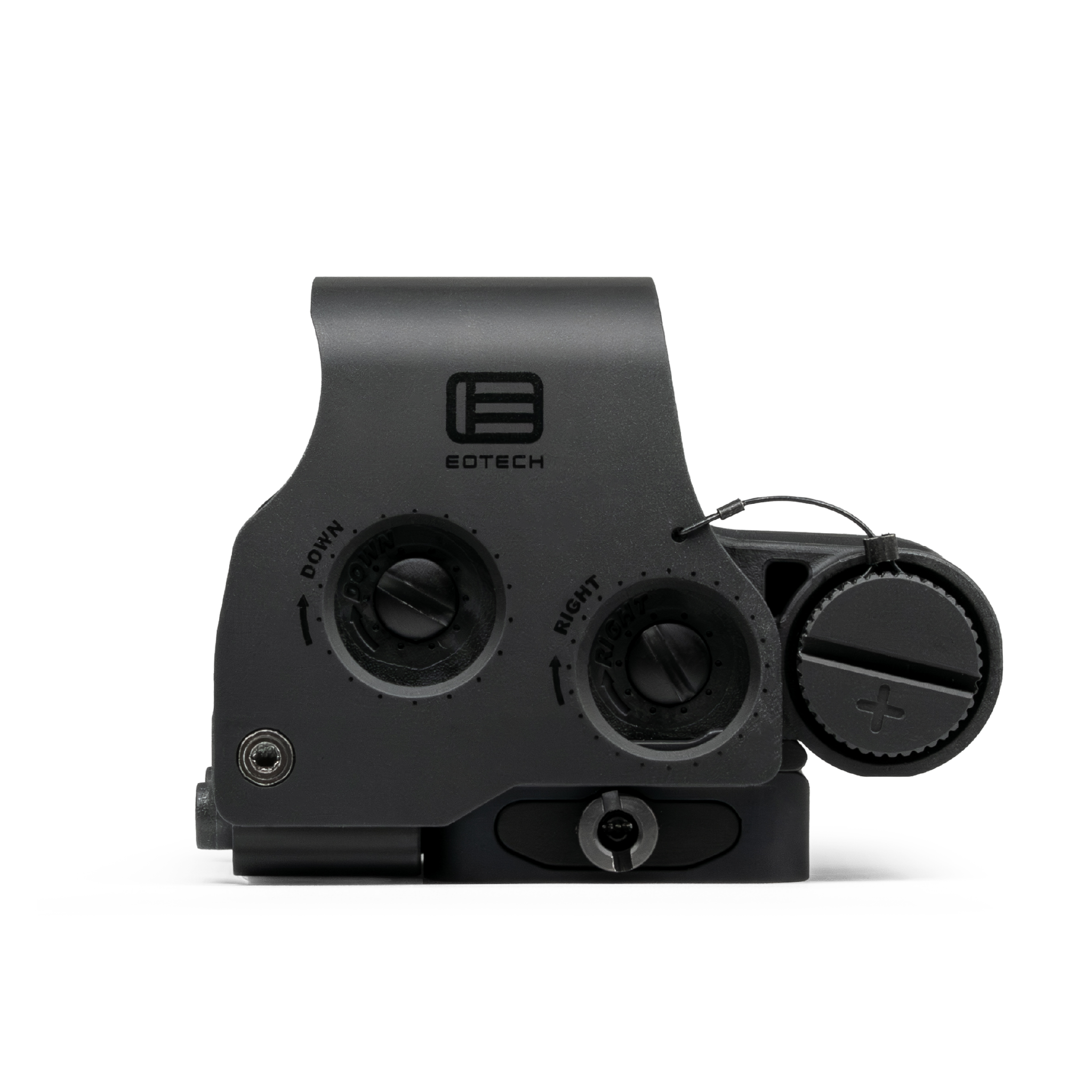

Windage & Elevation Adjustment

0.5 MOA per click

Night Vision Compatibility

Yes

Brightness

20 daylight settings
10 additional settings for Gen I through III+ night vision devices

Power Source

1 x CR123 battery

Country of Origin

Made in USA

Performance

Water Resistant

33 ft. (10 m) depth


Battery Life

1,000 continuous hours at nominal setting 12 at room temperature


Operating Temperate

-40°F to 140°F (-40°C to 60°C)

Included in the Box

  • Optic

  • CR123 Battery

  • Warranty Card

  • Quick Start Guide

FASTER. SMARTER. HOLOGRAPHIC.

EOTECH HWS® optics use advanced holography—not LED projection—to deliver a faster, clearer, and more accurate sight picture. Designed for speed, precision, and situational awareness that standard red dots can’t match.

RETICLES

0-RETICLE

The 68 MOA speed ring with a 1 MOA dot enables fast target acquisition and provides three aiming points, calibrated for .223 Cal. 62 Gr., 2,900 Vel. Other calibers can be used by determining the ranges. With shotguns, the ring approximates shot patterns, which vary based on choke and shell type.

DCR™

A 68 MOA ring with the top cutout and an easy-to-locate chevron at the bottom. Zero your .223/5.56 rifle at 50 yards and the DCR™ offers confident aiming points for up to 200 yards, with an additional 7-yard close-range solution at the chevron point.

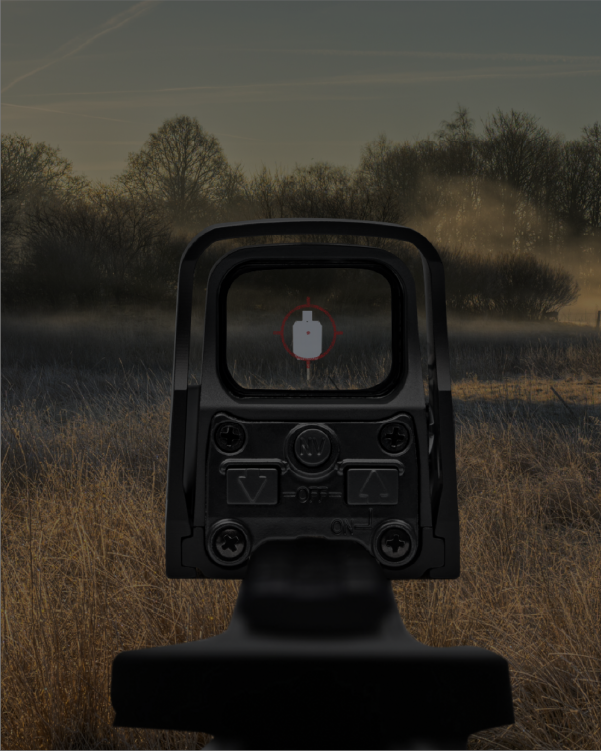

HWS® holographic optics let you view the reticle and target simultaneously for quicker, more intuitive target acquisition.



HWS® holographic optics let you view the reticle and target simultaneously for quicker, more intuitive target acquisition.



By projecting a holographic reticle at 200m, the HWS® minimizes parallax—making it the Close Combat Optic of choice for USSOCOM.



Built in the USA. Trusted worldwide. Every HWS® is crafted by American hands with precision and pride.
