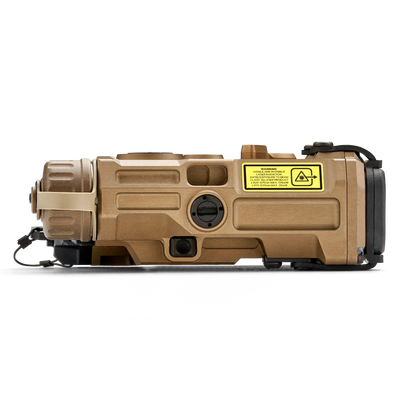

Tan EOTECH OGL On Gun Laser side view on white background.

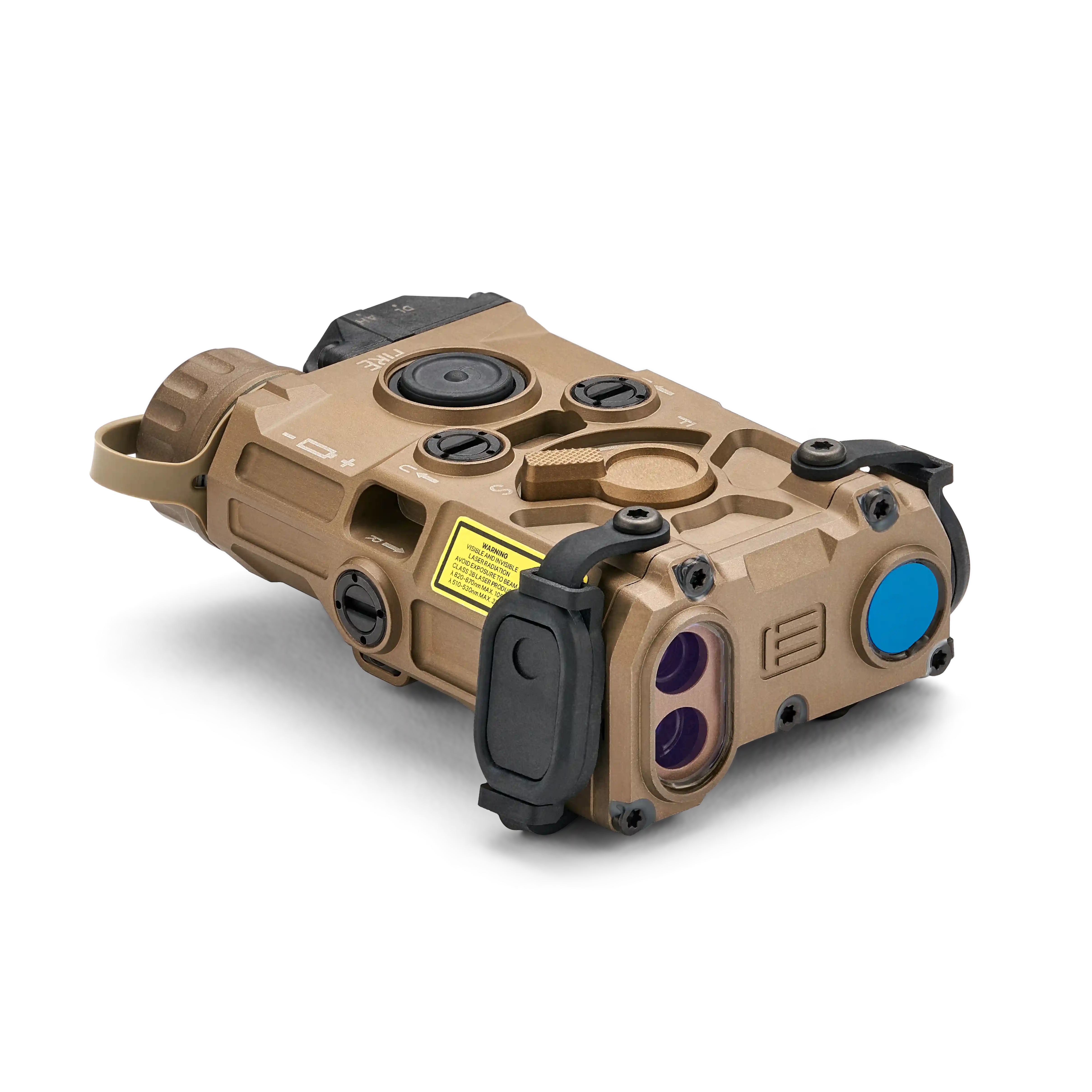

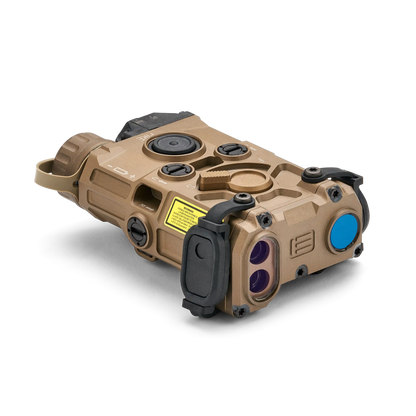

Tan EOTECH OGL On Gun Laser on white background.

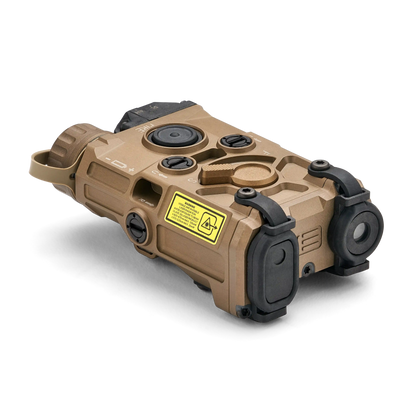

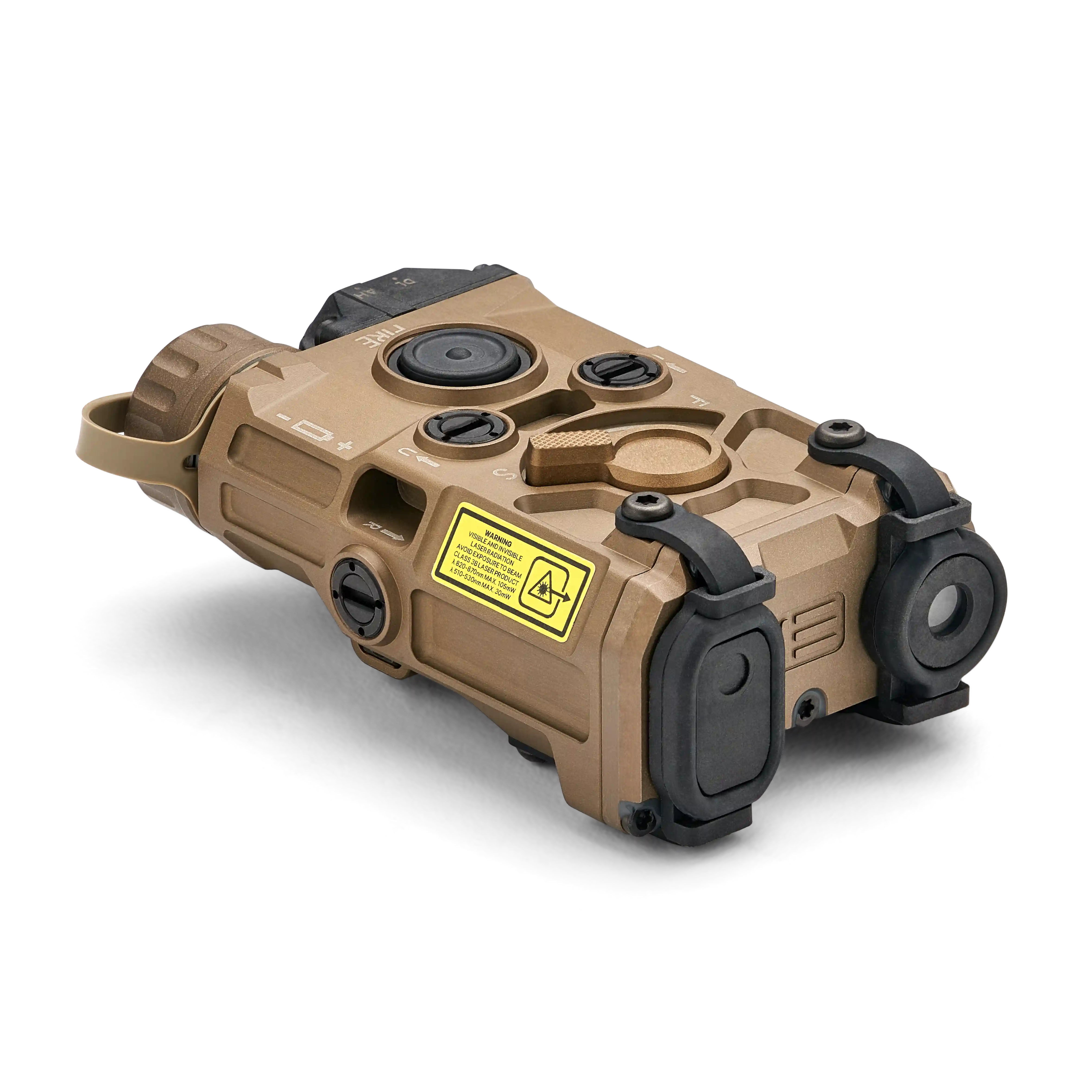

Tan EOTECH OGL On Gun Laser on white background.

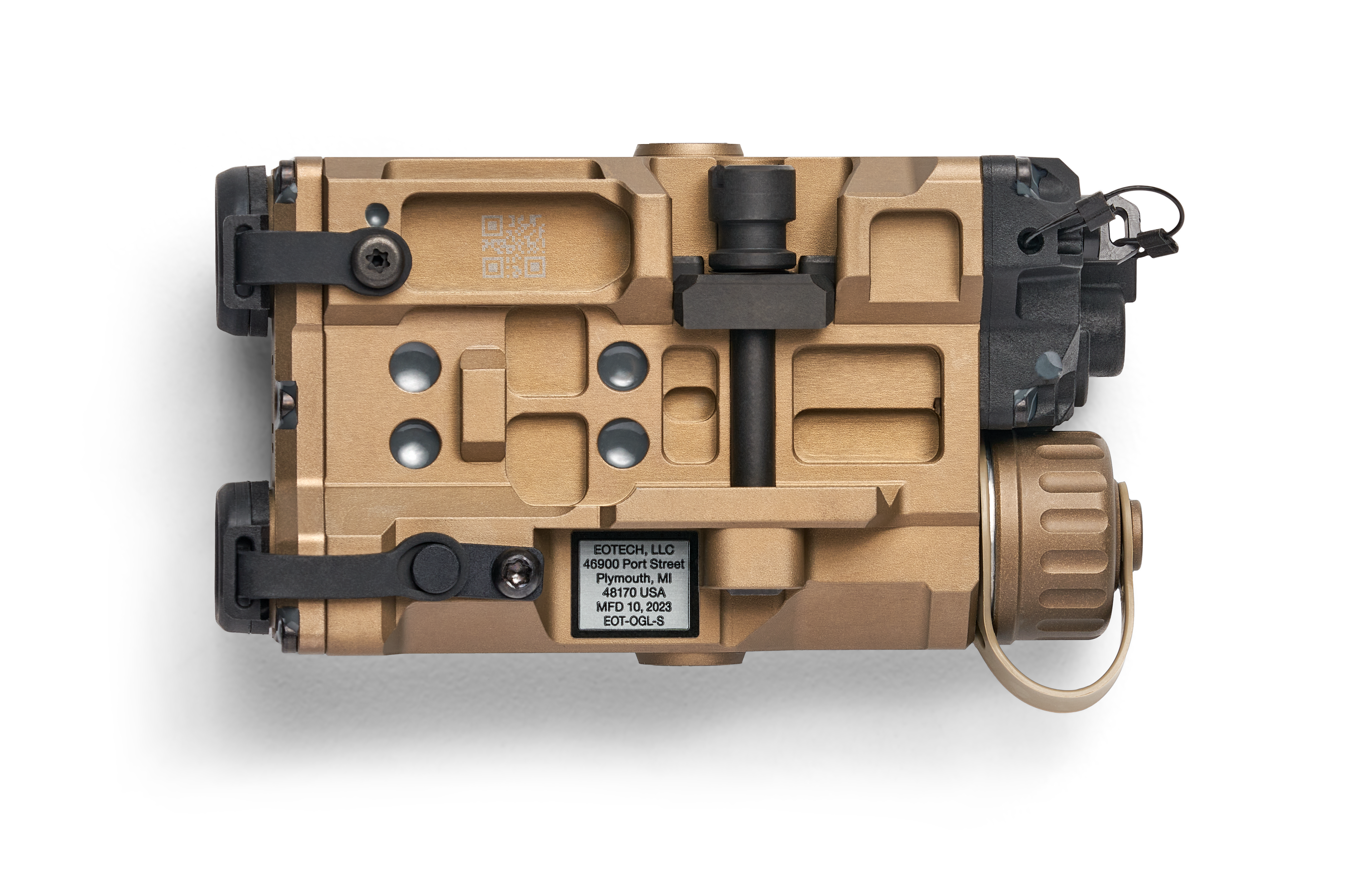

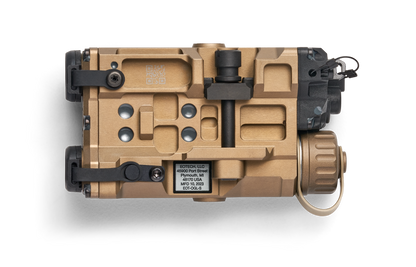

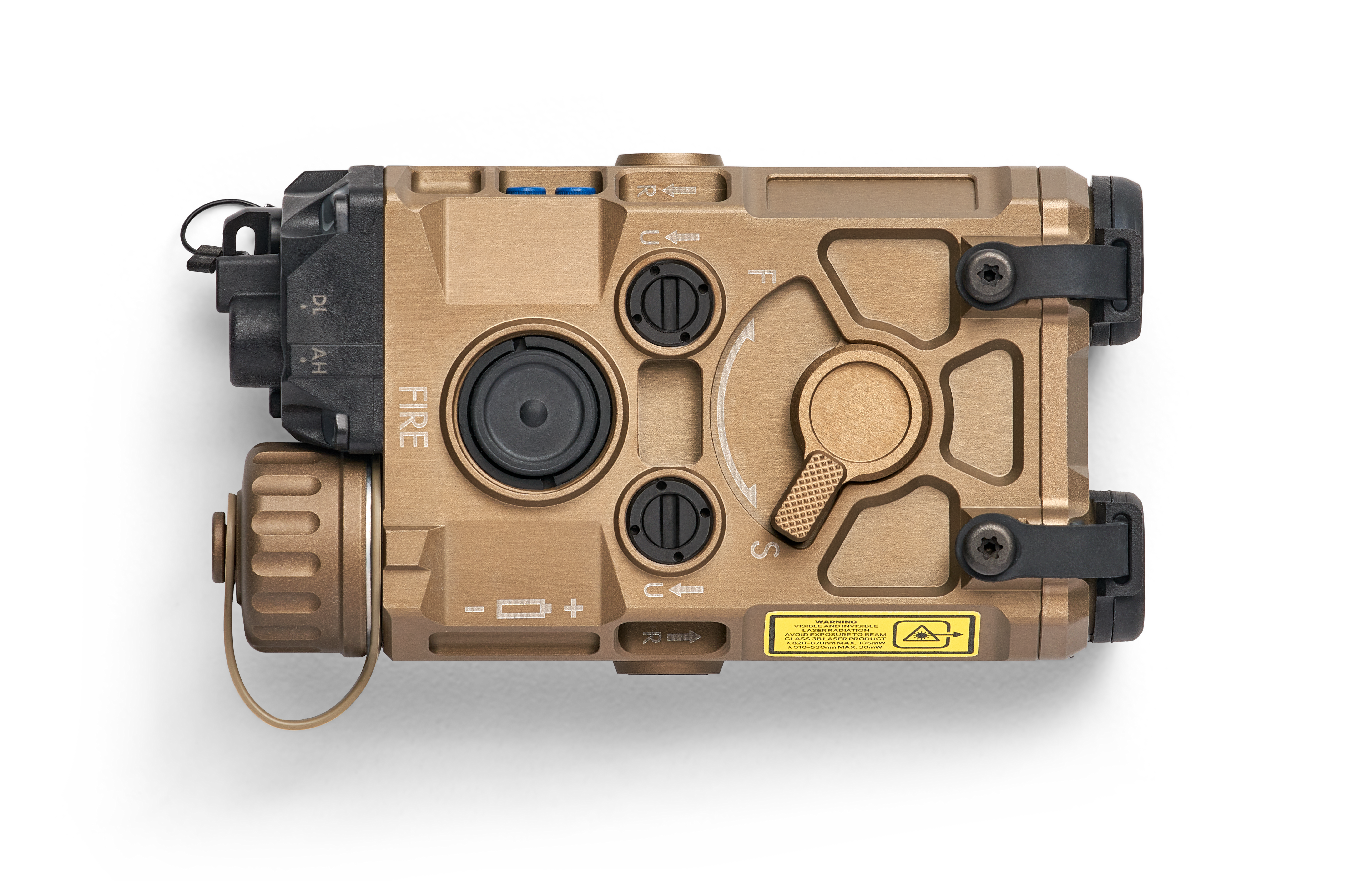

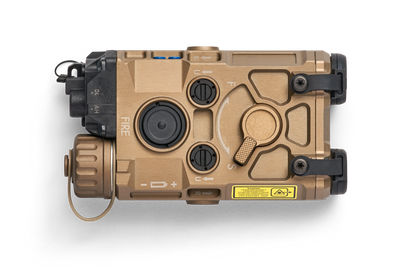

Tan EOTECH OGL On Gun Laser bottom view on white background.
Tan EOTECH OGL On Gun Laser bottom view on white background.

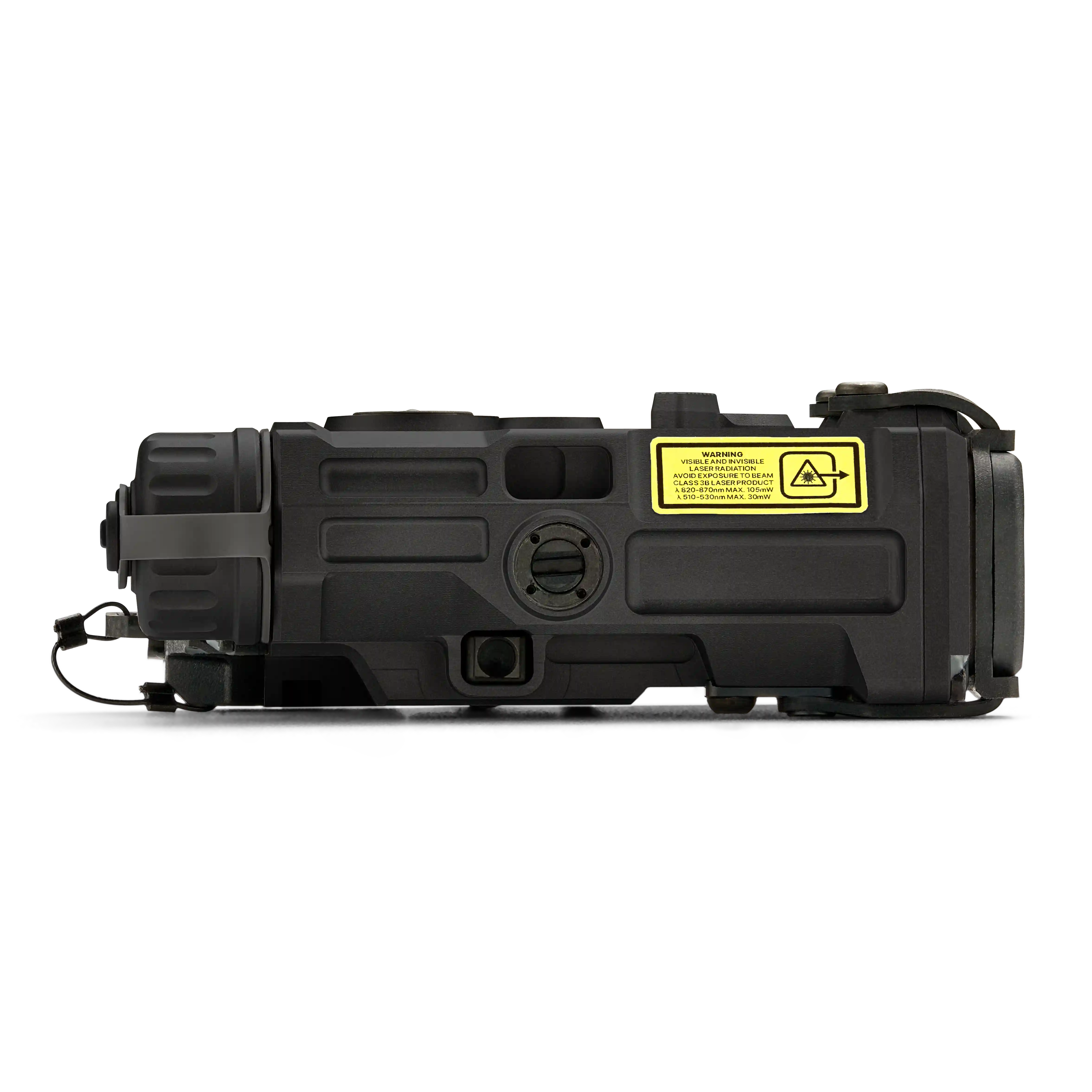

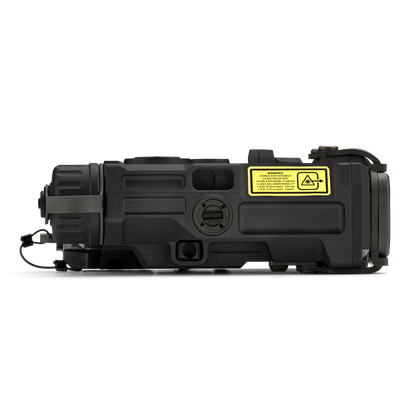

Black EOTECH OGL On Gun Laser side view on white background.

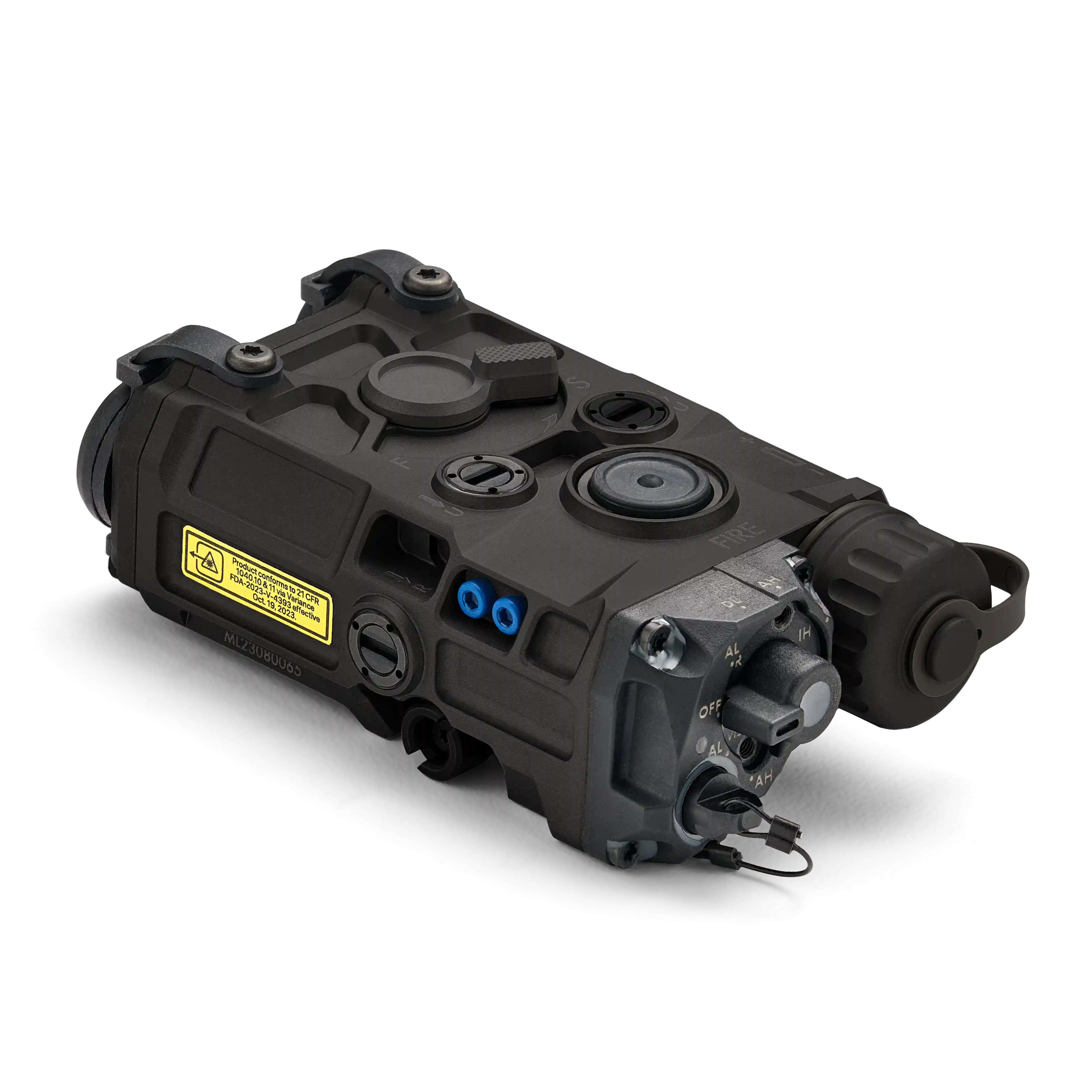

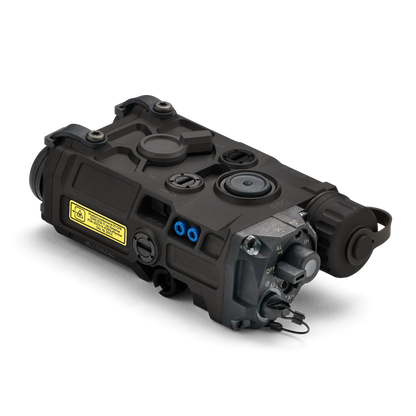

Black EOTECH OGL On Gun Laser on white background.
EOTECH OGL
EOTECH Logo Horizontal Copper on white background

.

OGL® Standard

Compact, durable, and intuitive laser/illuminator built to perform. The Standard Power is restricted to military and law enforcement.

$3,199.00
Color
Color: Tan

MORE ABOUT THE

OGL® Standard

Overview

The design for the EOTECH On-Gun Laser (OGL) focuses on human performance factors under extreme stress creating the premium choice for professional users. The OGL Standard Power (restricted to MIL/LE use) is powered by a single CR123 battery providing up to 9 hours of continuous run time. The machined aluminum housing provides extreme durability in a compact package roughly the size of a standard deck of playing cards.

The IR illuminator utilizes a high performing Vertical-Cavity Surface-Emitting Laser (VCSEL) diode creating a clean beam and allowing quick adjustments from spot to flood. The ergonomic (patent pending) lever is unique to the OGL and allows professionals to adjust their illumination needs instantly, all while maintaining superior situational awareness.

Tech Specs

Visible Aim Laser

Output Power Low: ≤ 4.7 mW (Class 3R)
Output Power High: ≤ 30 mW (Class 3B)
Beam Divergence: < 0.5 mrad
Wavelength: 520 nm (±10 nm)

NIR Aim Laser

Output Power Low: ≤ 0.7 mW (Class 3R)
Output Power High: ≤ 35 mW (Class 3B)
Beam Divergence: < 0.5 mrad
Wavelength: 850 nm (±10 nm)

NIR Illuminator

Output Power Low: ≤ 2.7 mW (Class 3R)
Output Power High: ≤ 105 mW (Class 3B)
Beam Divergence: Spot ≥ 23 mrad, Flood ≥ 105 mrad
Wavelength: 860 nm (+10 / –30 nm)

Sales

The OGL® Standard is not for sale online. Please reach out to your local EOTECH dealer or representative.

Included in the Box

  • EOTECH OGL Graphic on white background

    OGL

  • Zippered Soft Case

  • Multitool

  • Pattern Generators

  • Remote Switch

  • CR123 Battery
Restrictions & Considerations
Return Policy

Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain a RMA number.

Export Restrictions

Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774. EOTECH, LLC does not authorize any of its dealers or distributors to export this commodity without prior, written authorization, and will not provide warranty or post-sales support of unauthorized international exports.
