EOTECH Vudu® 8-32x50 SFP
MAXIMUM MAGNIFICATION OF YOUR ACCURACY POTENTIAL
UPC: 672294110101
Have questions? Visit our Help Center.
Features
Aircraft Grade
Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Fog Resistant
Nitrogen gas purging prevents internal fogging over the operating temperature range.
Shock Resistant
The rugged design prevents damage from heavy recoil and rough handling.
Water Resistant
The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.
Anti-Reflective Lenses
XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Aircraft Grade
An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets, our Model EXPS3TM HWS® delivers two eyes open shooting, 7mm raised base for lower iron sight access, and night vision capability.
EOTECH Vudu® Characteristics
Operator Grade Holographic Weapon Sight
An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.
Technical Specifications
Overview
EOTECH’s 8-32X50 is ideal for competitive and recreational long-range shooting. It features competitive turrets with large, easy-to-read minute-of-angle adjustments. The turrets are calibrated in .125 MOA (1/8" per click), offering extreme precision and accuracy.
Included in the box:
- Vudu® 8-32X50 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Sunshade
- Lens Cleaning Cloth
Operator Manuals:
Second Focal Plane

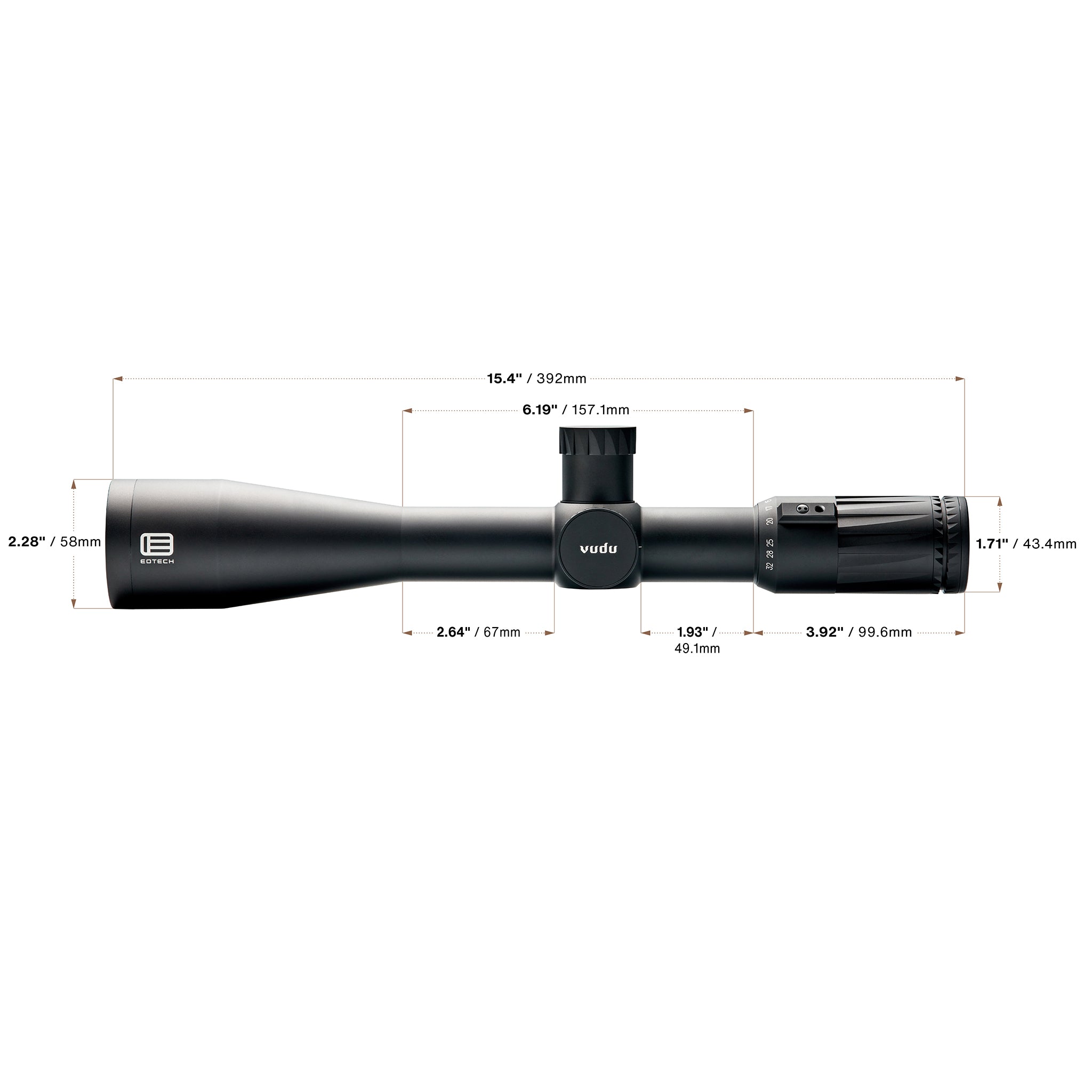

Overall Length
15.4" (392 mm)
Weight
32.8 oz (930 g)
Magnification
8-32X
Tube Diameter
34 mm
Objective Diameter
50 mm
Power Source
None
Eye Relief
8X: 3.39-3.86" (86-98 mm)
32X: 3.50-3.86" (89-98 mm)
Field-of-View @ 100 Yards
8X: 13.2 ft (4 m)
32X: 3.3 ft (1 m)
Country of Origin
Made in Japan
Reticle Specifications
There are a variety of reticles to choose from in each of the Vudu scope models. From speed rings that allow for quick target acquisition to intricate Christmas tree style reticles that offer precise hold solutions for drop and wind, the Vudu rifle scopes have you covered.
Vudu HC2 Reticle
The HC2 is a second focal plane MOA- based hashmark reticle that was designed for the precision long-range shooter. The non-illuminated crosshairs allow for elevation and windage correction, while the ultra-small center aiming dot (0.15 MOA at 32X) provides the utmost accuracy. The HC2 is an excellent choice for precision long-range shooting such as bench rest, F-class and small game dog hunting.
Adjustment Graduation Per Click
0.125 MOA
Adjustment Graduation Per Rotation
10 MOA
Total Elevation Travel
100 MOA
Total Windage Travel
80 MOA
EOTECH Two Dot Reticle
Our two-dot reticle pattern can be easily distin- guished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For or- dering this reticle, the model codes will end in -2.
EOTECH Four Dot Reticle
Use this ballistic reticle with 5.56 Nato/.223 cal with 62 gr M855 FMJ at roughly 2,680 fps with a 14.5" barrel. For ordering this reticle, the model codes will end in -4. Aiming dots on the 4-dot reticle may not be distinguishable without magnification.
Brightness Options
The EXPS3™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.
Dark
Bright
