Vudu X 1-6x24 SFP
Have questions? Visit our Help Center.
Technical Specifications
Overview
The Vudu X Series 1-6X Rifle Scope features aircraft-grade aluminum construction, daylight bright illuminated reticle, and precision turrets that provide deadly accuracy. The magnification power ring includes easy to see laser engraved numbering and a removable throw lever for quick transitions through the magnification range. Capped turrets provide a clean look while protecting them from inadvertent adjustments. Clear, crisp glass and generous eye relief makes this a go-to LPVO for any close to medium range targets.
Included in the box:
- Vudu X 1-6x24 SFP Rifle Scope
- Operator Manual
- Throw Lever
- Flip-Up Protective Lens Caps
- Lens Cleaning Cloth
Operator Manuals:
Second Focal Plane

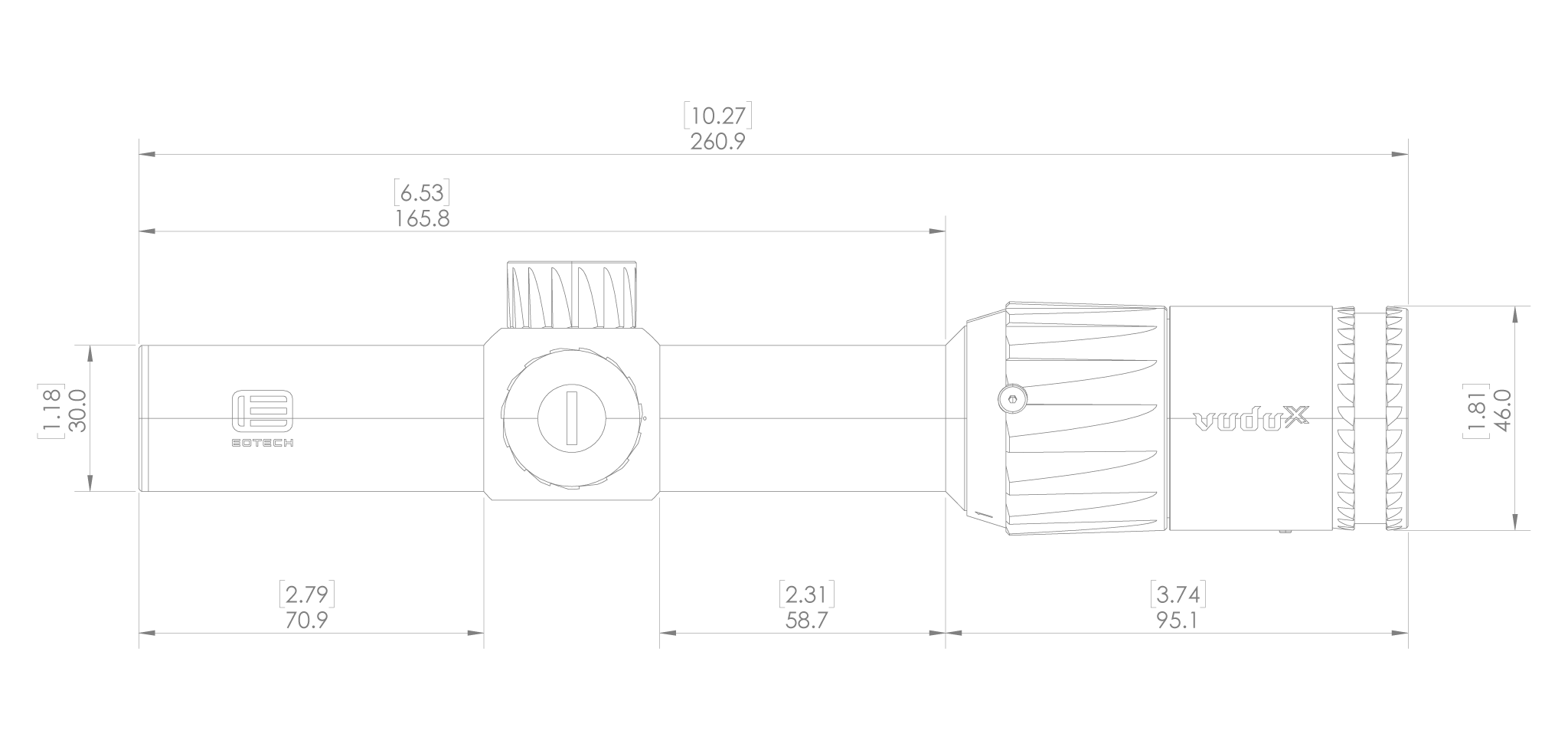

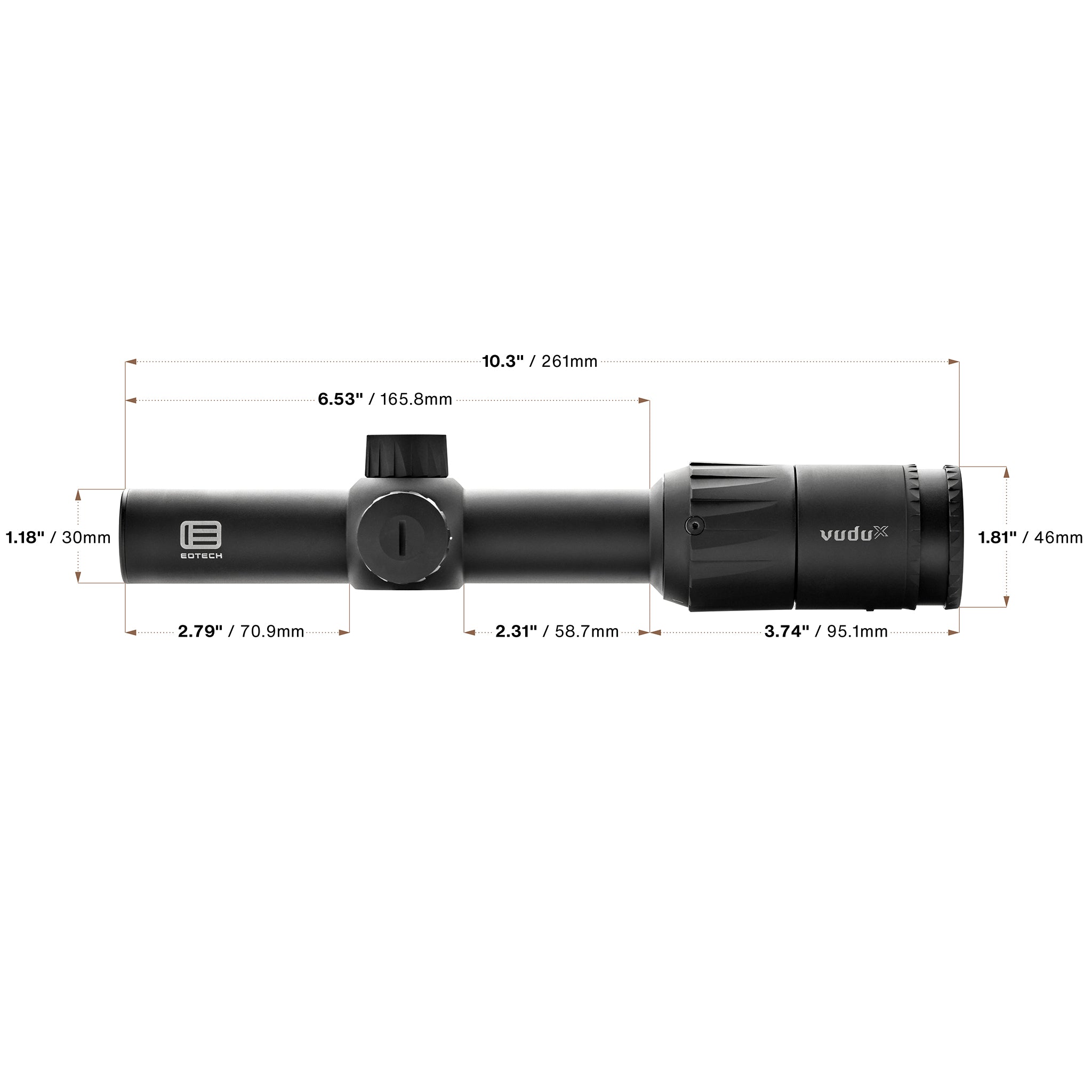

Overall Length
10.3" (261 mm)
Weight
17.8 oz (505 g)
Magnification
1-6X
Tube Diameter
30 mm
Objective Diameter
24 mm
Power Source
CR2032
Eye Relief
1X: 3.3-3.9" (84-99 mm)
6X: 3.3-3.9" (84-99 mm)
Field-of-View @ 100 Yards
1X: 110 ft (33.5 m)
6X: 19 ft (5.8 m)
Country of Origin
Made in Philippines


Reticle Specifications
There are a variety of reticles to choose from in each of the Vudu scope models. From speed rings that allow for quick target acquisition to intricate Christmas tree style reticles that offer precise hold solutions for drop and wind, the Vudu rifle scopes have you covered.
Vudu DP1 Reticle


Adjustment Graduation Per Click
0.5 MOA
Adjustment Graduation Per Rotation
30 MOA
Total Elevation Travel
160 MOA
Total Windage Travel
160 MOA
Vudu BD1 Reticle


Adjustment Graduation Per Click
0.5 MOA
Adjustment Graduation Per Rotation
30 MOA
Total Elevation Travel
160 MOA
Total Windage Travel
160 MOA


Vudu SR3 Reticle
Use this ballistic reticle with 5.56 Nato/.223 cal with 62 gr M855 FMJ at roughly 2,680 fps with a 14.5" barrel. For ordering this reticle, the model codes will end in -4. Aiming dots on the 4-dot reticle may not be distinguishable without magnification.
Restrictions & Considerations
Before Making A Purchase:
Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain a RMA number.
Export Restrictions:
Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774. EOTECH, LLC does not authorize any of its dealers or distributors to export this commodity without prior, written authorization, and will not provide warranty or post-sales support of unauthorized international exports.
Prop 65 Warnings:
This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
