Technical Specifications
Overview
Regardless of the scenario, the Holographic Hybrid Sight VI (HHS VI), featuring an EXPS3-2 with a G43 magnifier can provide accurate shooting at any distance. The night-vision compatible EXPS and compact G43 3X magnifier require very little rail space but provide significant shooting advantages.
* Aiming dots on the 2-Dot reticle may not be distinguishable without magnification.
Included in the box:
- HHS VI™ (EXPS3-2 & G43.STS)
- Quick-Start Guide
- Warranty & Registration Card
- CR123 Battery
Night Vision Compatible
L X W X H
6.9" x 2.3" x 3.3" (175.2 x 58.4 x 83.8 mm)
Weight
23.1oz (654.8g)
Water Resistant
33ft. (10 m) depth
Mount
1" Weaver or MIL-STD-1913 rail
Windage & Elevation Adjustment
0.5 MOA per click
Brightness
20 daylight settings
10 additional settings for Gen I through III+ night vision devices
Power Source
1 x CR123 battery
Battery Life
1,000 continuous hours at nominal setting 12 at room temperature
Fixed Magnification
3X
Eye Relief
2.5" (63.5 mm)
Field-of-View w/ Magnifier
7°
Exit Pupil
4.9 mm
Sealing
Fog resistant internal optics
Country of Origin
HWS: Made in USA
G43: Assembled in USA
Holographic Hybrid Sight Performance Characteristics


Reticle Options
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.


EOTECH Two Dot Reticle
Our two-dot reticle pattern can be easily distinguished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes will end in -2.
Range Estimation with Unmagnified HWS
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.








Brightness Options
The EXPS3™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.

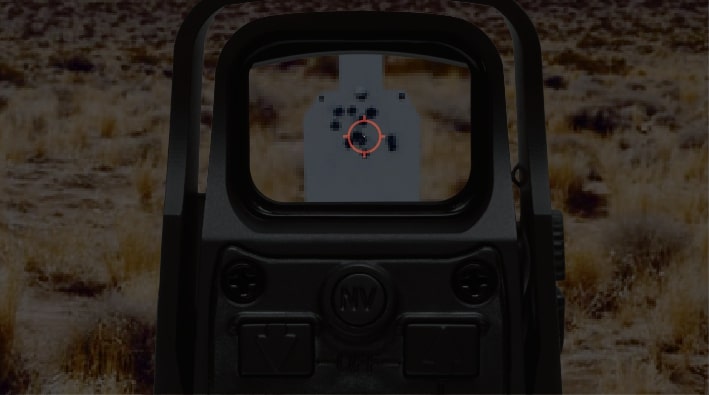

Dark

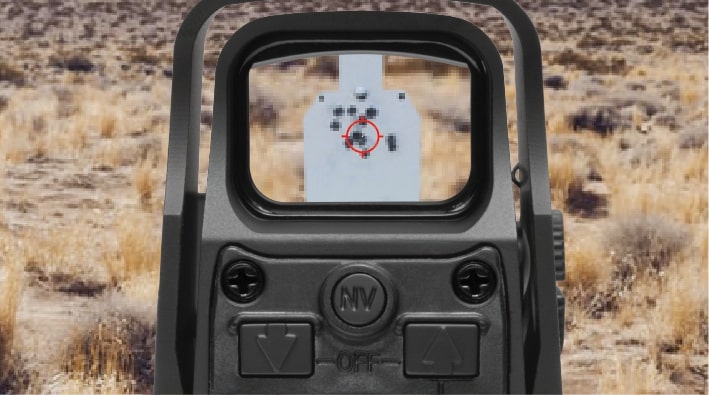

Bright
Restrictions & Considerations
Before Making A Purchase:
Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain a RMA number.
Export Restrictions:
Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774. EOTECH, LLC does not authorize any of its dealers or distributors to export this commodity without prior, written authorization, and will not provide warranty or post-sales support of unauthorized international exports.
Prop 65 Warnings:
This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
