EOTECH HHS™ STC
In collaboration with Gorilla, a manufacturer of high performance firearms, suppressors and mounting systems.
Have questions? Visit our Help Center.
Technical Specifications
Overview

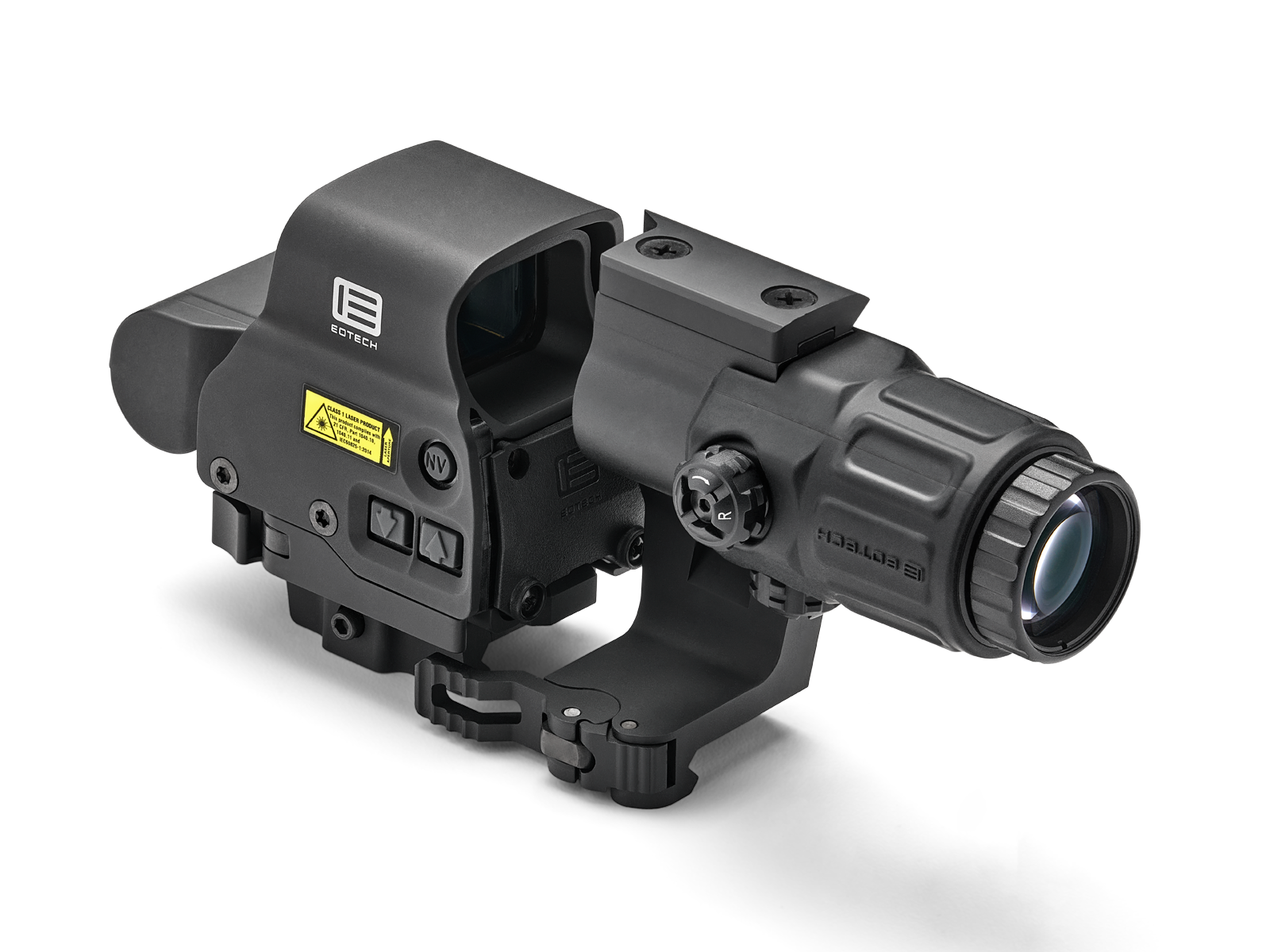

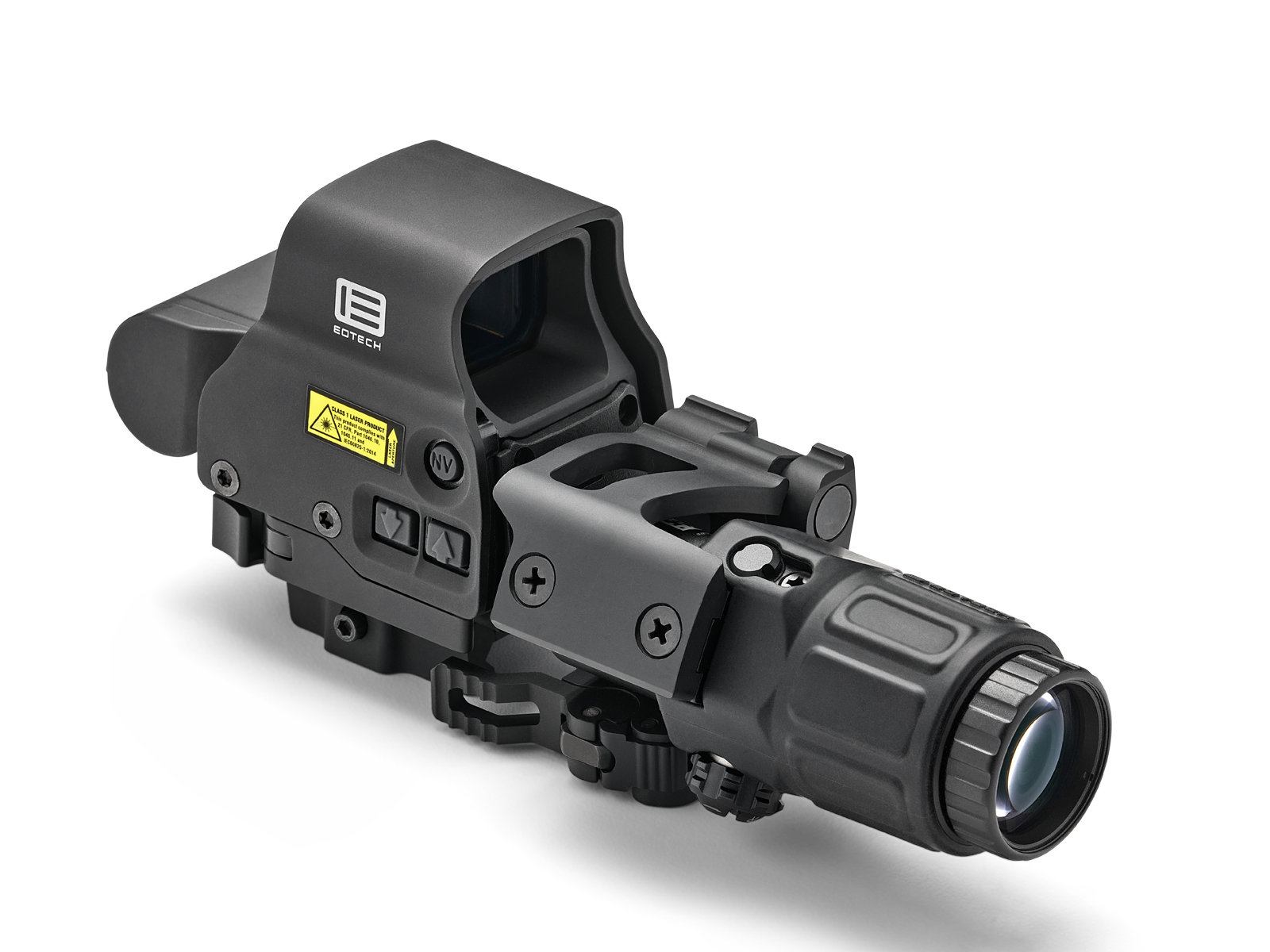

In collaboration with Gorilla, a manufacturer of high performance firearms, suppressors, and mounting systems, EOTECH introduces the HHS STC. This HHS combination pairs the EXPS3-0 Holographic Weapon Sight and G33, 3X magnifier, with a riser mount and STC (Switch-To-Center) magnifier mount that positions the line of sight at 2.26 inches above bore. This solution provides a more natural shooting posture and is ideal for use with gas masks and NV goggles. The magnifier can be switched down and out of the way to provide fast 1X target acquisition, and quickly switched up for more precise, accurate shot placement at distance.
Included in the box:
- HHS™ STC (EXPS3-0 & G33.STS)
- Gorilla™ HWS Riser Mount
- Gorilla™ STC Magnifier Mount
- Quick-Start Guide
- Warranty & Registration Card
- CR123 Battery
Night Vision Compatible
L X W X H
8.1" × 2.75" × 3.75" (205.7 × 69.9 × 76.2 mm)
Weight
25oz (708.7 g)
Water Resistant
33ft. (10 m) depth
Mount
1" Weaver or MIL-STD-1913 rail
Windage & Elevation Adjustment
0.5 MOA per click
Brightness
20 daylight settings
10 additional settings for Gen I through III+ night vision devices
Power Source
1 x CR123 battery
Battery Life
1,000 continuous hours at nominal setting 12 at room temperature
Operating Temperature
-40°F to 140°F (-40°C to 60°C)
Fixed Magnification
3X
Eye Relief
2.2" (55.9 mm)
Field-of-View w/ Magnifier
7.3°
Sealing
Fog resistant internal optics
Country of Origin
HWS Made in the USA
Magnifier Assembled in USA
Gorilla Mounts Made in USA
Reticle Options
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
EOTECH One Dot Reticle
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the opera- tor will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.
EOTECH Four Dot Reticle
Use this ballistic reticle with 5.56 Nato/.223 cal with 62 gr M855 FMJ at roughly 2,680 fps with a 14.5" barrel. For ordering this reticle, the model codes will end in -4. Aiming dots on the 4-dot reticle may not be distinguishable without magnification.
EOTECH Two Dot Reticle
Our two-dot reticle pattern can be easily distin- guished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For or- dering this reticle, the model codes will end in -2.
Range Estimation with Unmagnified HWS
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.
Brightness Options
The EXPS3™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.
Dark
Bright
Restrictions & Considerations
Before Making A Purchase:
Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain a RMA number.
Export Restrictions:
Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774. EOTECH, LLC does not authorize any of its dealers or distributors to export this commodity without prior, written authorization, and will not provide warranty or post-sales support of unauthorized international exports.
Prop 65 Warnings:
This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
