EOTECH Vudu® 5-25x50 FFP
THE SHORT ROUTE TO LONG-RANGE MASTERY
Have questions? Visit our Help Center.
Features
Aircraft Grade
Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Fog Resistant
Nitrogen gas purging prevents internal fogging over the operating temperature range.
Shock Resistant
The rugged design prevents damage from heavy recoil and rough handling.
Water Resistant
The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.
Anti-Reflective Lenses
XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Aircraft Grade
An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets, our Model EXPS3TM HWS® delivers two eyes open shooting, 7mm raised base for lower iron sight access, and night vision capability.
EOTECH Vudu® Characteristics
Operator Grade Holographic Weapon Sight
An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.
Technical Specifications
Overview
The Vudu 5-25X50 is ideal for short platform rifles. At approximately 11.2 inches in length, the 5-25X is one of the shortest first focal plane rifle scopes on the market. The elevation turret includes a push/pull locking system and EOTECH’s EZ Chek Zero Stop. One unique advantage of the short design is that it provides the ability to attach either a clip-on night vision or thermal device in front of the scope.
Included in the box:
- Vudu® 5-25X50 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Sunshade
- Lens Cleaning Cloth
- Battery
- Zero Stop Wrench
Operator Manuals:
First Focal Plane

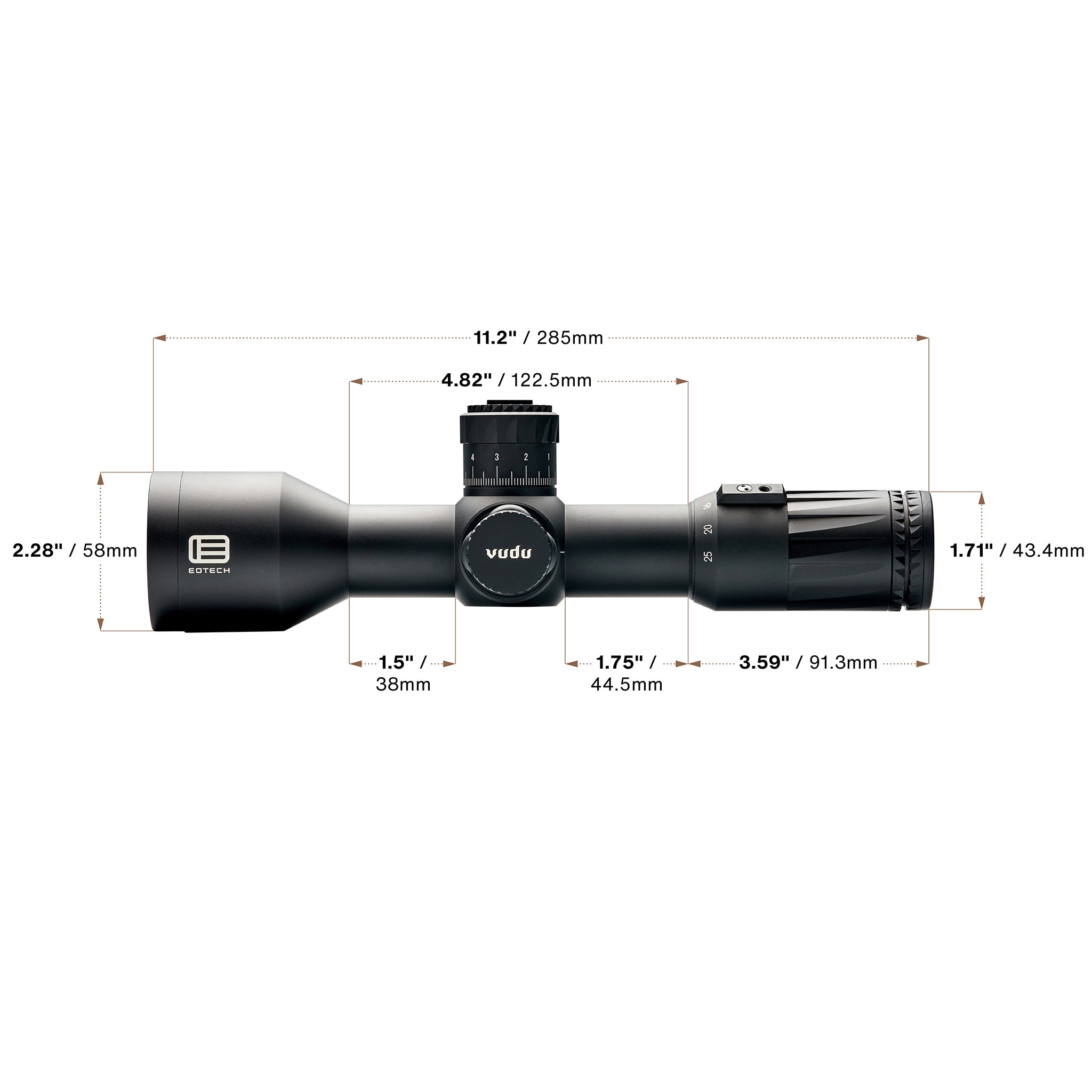

Overall Length
11.2" (285 mm)
Weight
29.5 oz (835 g)
Magnification
5-25X
Tube Diameter
34 mm
Objective Diameter
50 mm
Power Source
CR2032
Eye Relief
5X: 2.96-3.71" (75-94 mm)
25X: 3.27-3.63" (83-92 mm)
Field-of-View @ 100 Yards
5X: 23.3 ft (7.1 m)
25X: 4.7 ft (1.43 m)
Country of Origin
Made in Japan
Reticle Specifications
There are a variety of reticles to choose from in each of the Vudu scope models. From speed rings that allow for quick target acquisition to intricate Christmas tree style reticles that offer precise hold solutions for drop and wind, the Vudu rifle scopes have you covered.
Vudu MD3 Reticle
The MD3 is a first focal plane MRAD-based hashmark reticle that provides ranging, holdover and wind compensation in a very clean sight picture. The stadia lines are pulled back from the illuminated center aiming dot for improved long-range accuracy.
Adjustment Graduation Per Click
0.1 MRAD
Adjustment Graduation Per Rotation
10 MRAD
Total Elevation Travel
29 MRAD
Total Windage Travel
23 MRAD
Vudu MD4 Reticle
The MD4 reticle is based on the Minute of Angle, or MOA, angle of measurement. With a known target size, this system allows the shooter to use angle ratios to determine distance of target with reliable accuracy. The MD4 reticle is 0.25 MOA per click adjustments that subtend to .25" at 100 yards.
Adjustment Graduation Per Click
0.25 MOA
Adjustment Graduation Per Rotation
34 MOA
Total Elevation Travel
100 MOA
Total Windage Travel
80 MOA
Horus H59 Reticle
The MRAD-based H59 reticle features the popular horizontal and vertical grid pattern that allows for built-in range-finding, holdovers and wind compensation to maximize extreme-range precision. The windage tree is also perfect for quick follow-up corrections.
Adjustment Graduation Per Click
0.1 MRAD
Adjustment Graduation Per Rotation
10 MRAD
Total Elevation Travel
29 MRAD
Total Windage Travel
23 MRAD
Horus TR3 Reticle
The TREMOR3 reticle is designed for speed and accuracy. It's combines a patented feature that gives users the capability of quickly and accurately estimating target ranges and compensate for drop & wind. Additionally it provides the user wind speed and drop correction information for fast and accurate second shot corrections.
Adjustment Graduation Per Click
0.1 MRAD
Adjustment Graduation Per Rotation
10 MRAD
Total Elevation Travel
29 MRAD
Total Windage Travel
23 MRAD
Restrictions& Considerations
Before Making A Purchase:
Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain a RMA number.
Export Restrictions:
Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774. EOTECH, LLC does not authorize any of its dealers or distributors to export this commodity without prior, written authorization, and will not provide warranty or post-sales support of unauthorized international exports.
Prop 65 Warnings:
This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
